HB06 HiClean-plus

HB06 HiClean-plus

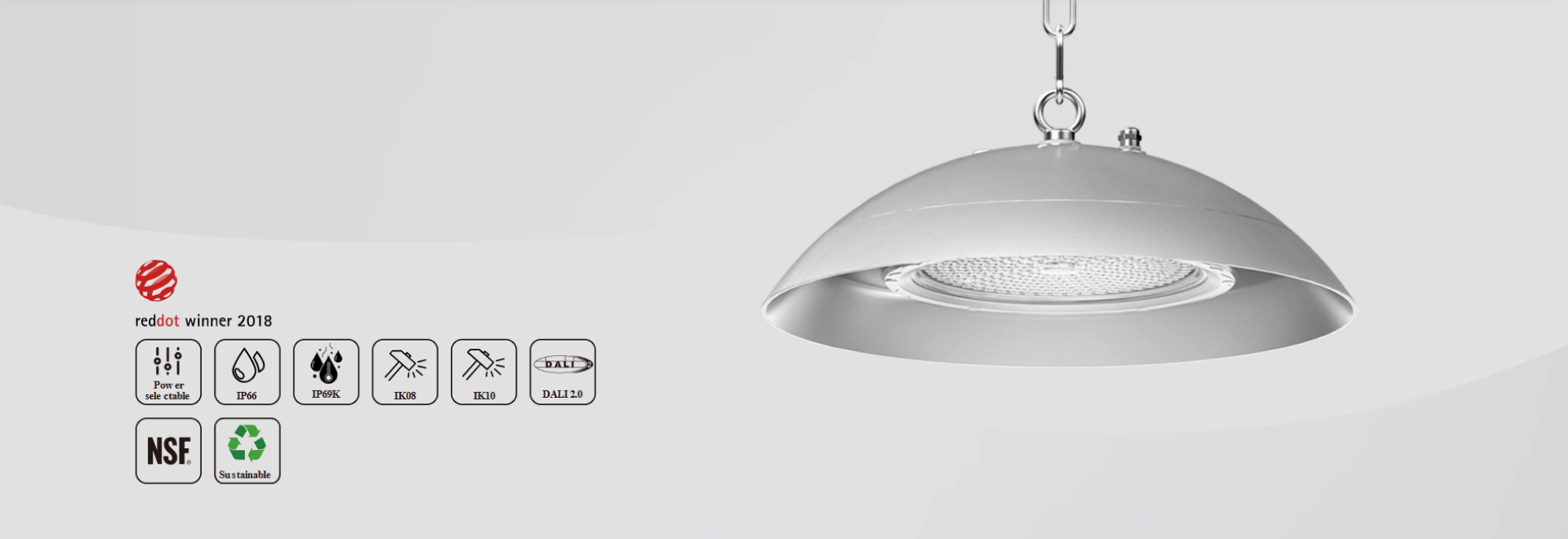

Winner of the Red Dot Award, HiClean Plus is a breakthrough design in industrial lighting. The smooth housing is combined with aesthetic taste and dust-proof features. On the basis of a highly efficient heat dissipation solution, our design concept is “UNIBODY”, which leads the way in high bay lights.



  • Food Processing: NSF & IP66/IP69K & No Toxic chemicals & Smooth outline & Non-exposed stainless steel screws & No glass & Anti UV… etc.
  • UGR<19 with honeycomb diffuser available.
  • Full certificates: CE, ROHS, UL, DLC, SAA, EMC, LM79, D-mark, NSF

Specifications

Series Code
HB06
Power
100W 120W 150W 200W
Efficacy
150LM/W 155LM/W
Input Voltage
120-277Vac, 50 / 60 Hz
Power Factor
>0.95
Surge Protection
6kV line-line, 10kV line-earth
UGR Level
26 (Low Glare Optics)
Control Options
Dimmable, DALI, Daylight/Microwave/PIR Sensors, ZigBee, Wireless
IP Rating
IP66 WATERPROOF
IK Rating
IK08, IK10 (Impact Resistant)
CCT / CRI
5000K, 4000K, 3000K | Ra: 80, 70
Operating Temp
-30°C to +50°C
Mounting Option
Loop Hanging, Ceiling, Pipe Mounting
Warranty
1 Year Warranty
